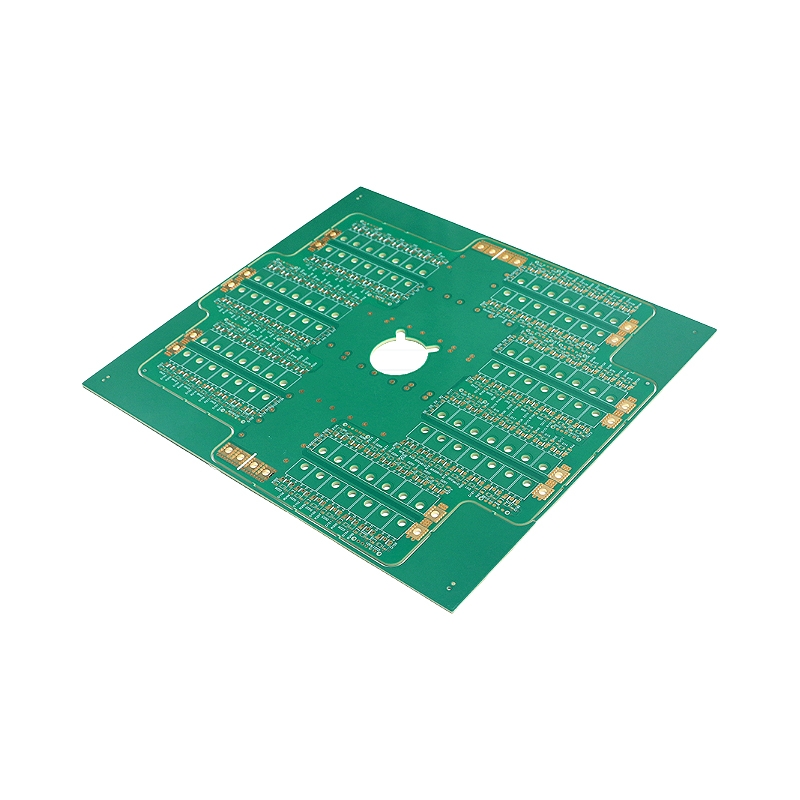

Heavy Copper Board
Product Model：10L
Product Description：

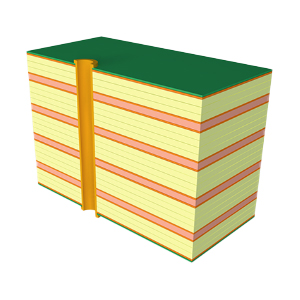

▪ Number of layers - 10L
▪ Material - TU865
▪ Plate thickness - 3.5mm
▪ Copper thickness of inner and outer layers - 5OZ
▪ Minimum line width/line spacing - 2/2mm
▪ Minimum hole diameter - 0.7mm
▪ Surface treatment - immersion gold ▪ Application field - communication equipment
