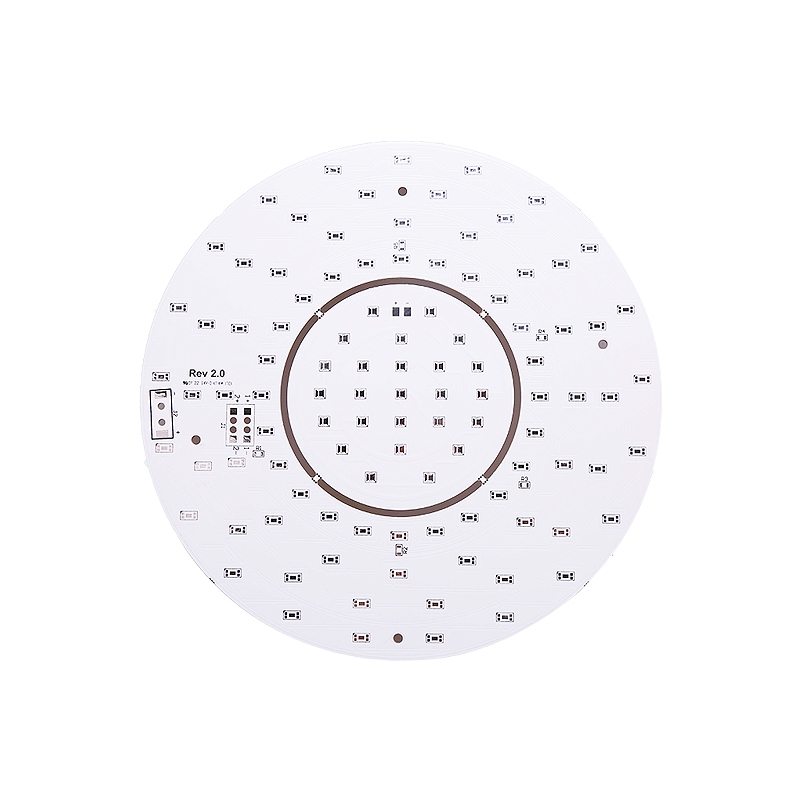

3W LED Aluminum
3W LED Aluminum
Product Model：1L
Product Description：
▪ Layer--1L
▪ Material --VT4B9
▪ Thickness --1.524mm
▪ Copper --140um
▪ Finishing --LF-HASL
