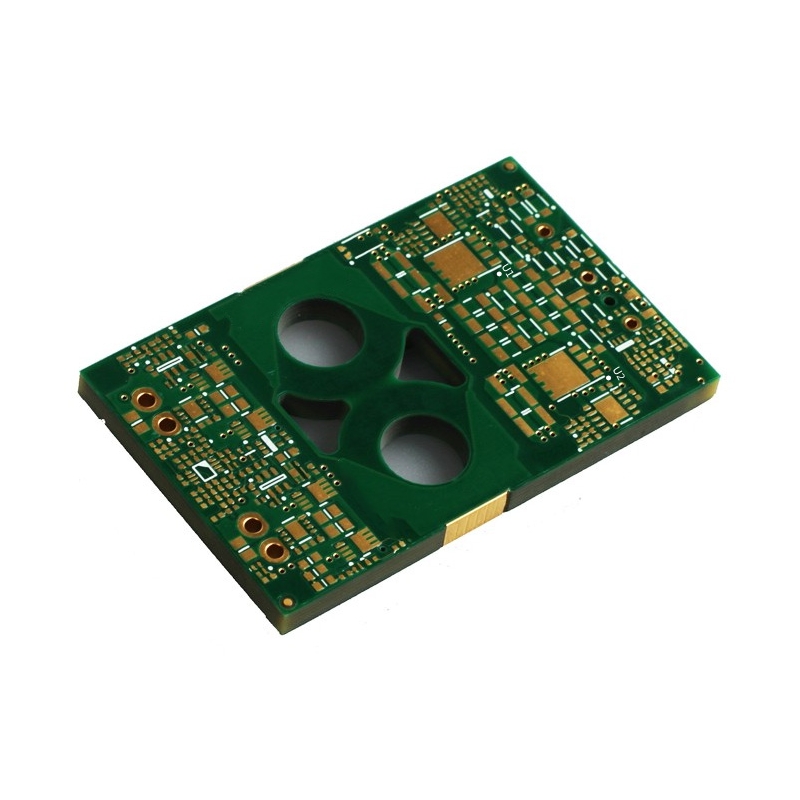

5 oz Power Board
5 oz Power Board
Product Model：12L
Product Description：
▪ Plate material: S1000-2m
▪ Plate thickness: 4.5mm
▪ Number of layers: 12 layers
▪ Finished copper thickness: 4OZ for the inner layer, 5OZ for the outer layer
▪ Smallest copper hole: 30um
▪ Surface process: Immersion gold plating
Previous Article：Hybrid Laminate Board
Next Article：Heavy Copper Board
