Hybrid Laminate Board

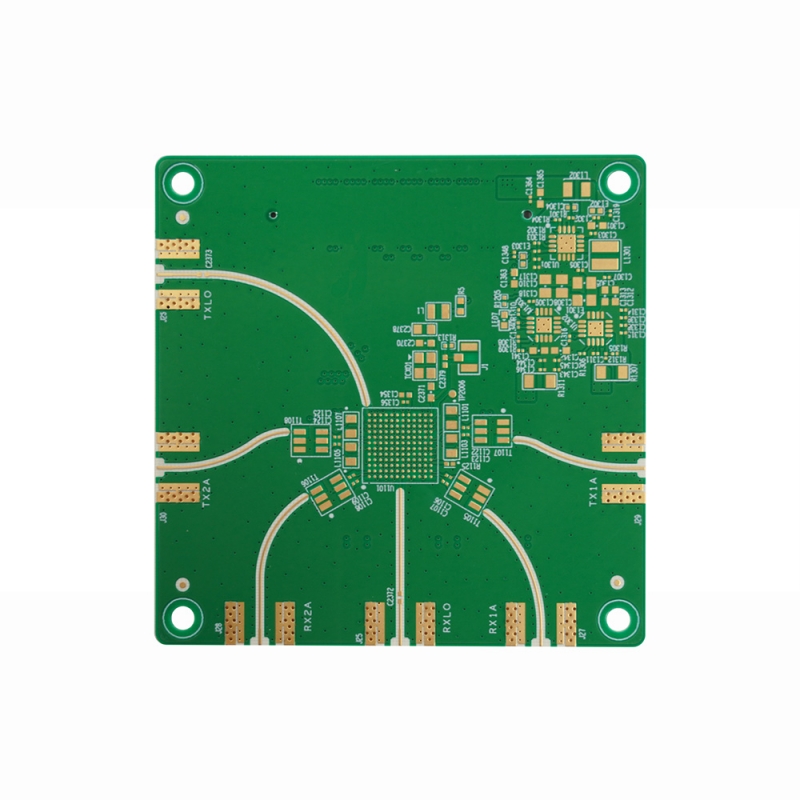

Hybrid Laminate Board
Product Model：6L
Product Description：
▪ Number of layers: 6 layers
▪ Process: Immersion gold plating
▪ Aspect ratio: 8:1
▪ Finished product thickness: 1.6mm
▪ Minimum hole diameter: 0.2mm
▪ Line width/line spacing: 5mil/5mil
▪ Technical point: FR4+Rogers 4350B hybrid pressing
