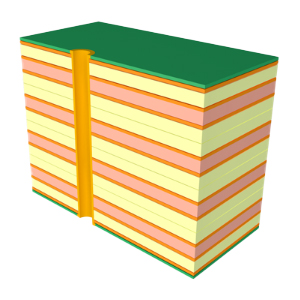

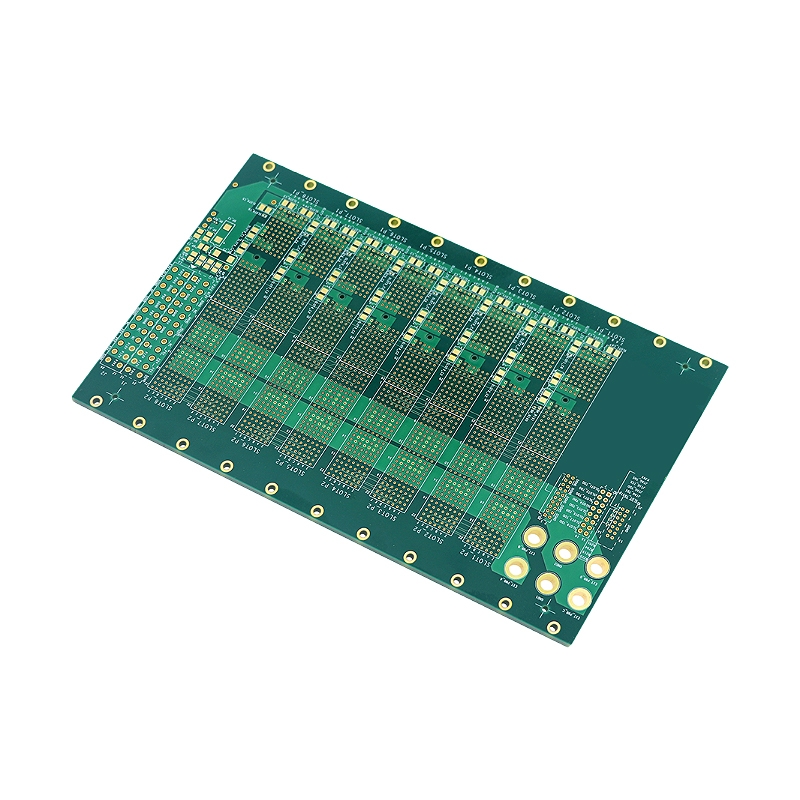

Heavy Copper Board
Heavy Copper Board
Product Model：10L
Product Description：
▪ Number of layers - 10L
▪ Material - EM-827
▪ Plate thickness - 4.85mm
▪ Copper thickness of inner and outer layers - 3 oz
▪ Minimum line width/line spacing - 0.45/0.30mm
▪ Minimum hole diameter - 0.25mm
▪ Surface treatment - immersion gold plating
