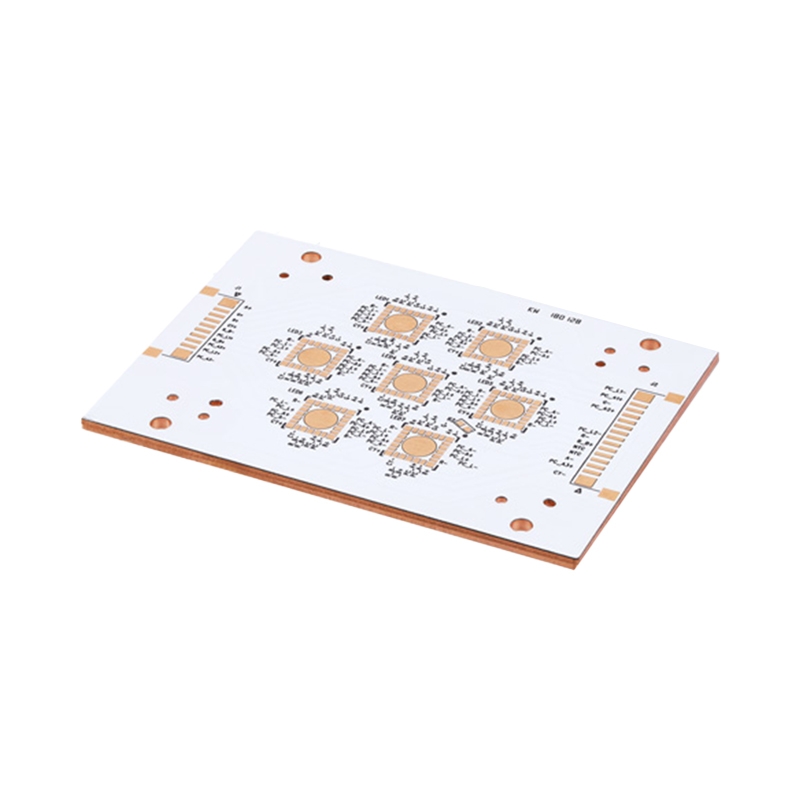

Single Copper base
Single Copper base
Product Model：1L
Product Description：
▪ Layer--1L
▪ Material --Copper Base
▪ Thickness --1.6mm
▪ Copper --70um
▪ Finishing --ENING
Previous Article：3W LED Aluminum
Next Article：HF Antenna Board
