Product Center
Current Option：Specialty Circuit Series
-

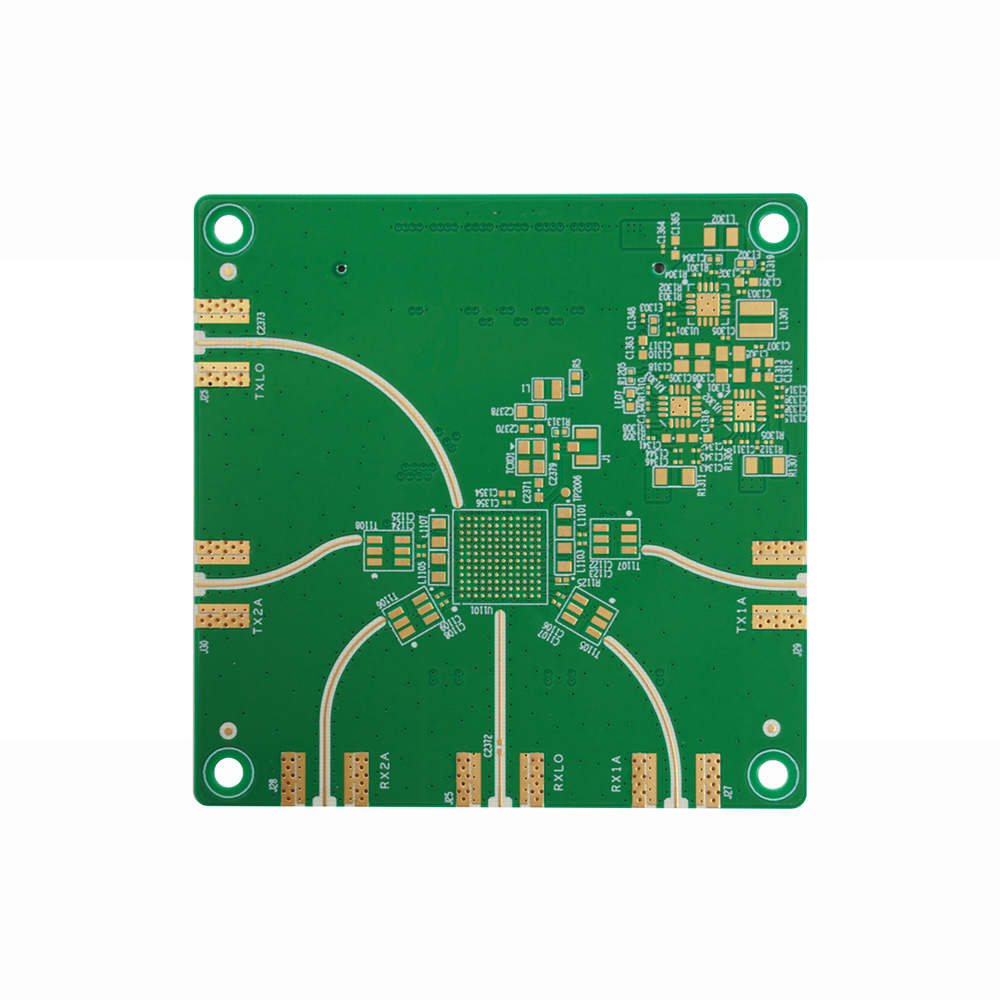

Hybrid Laminate Board6L
Hybrid Laminate Board6L
▪ Number of layers: 6 layers▪ Process: Immersion gold plating▪ Aspect ratio: 8:1▪ Finished product thickness: 1.6mm▪ Minimum hole diameter: 0.2mm▪ Line width/line spacing: 5mil/5mil▪ Technical point: FR4+Rogers 4350B hybrid pressing
Learn More > -

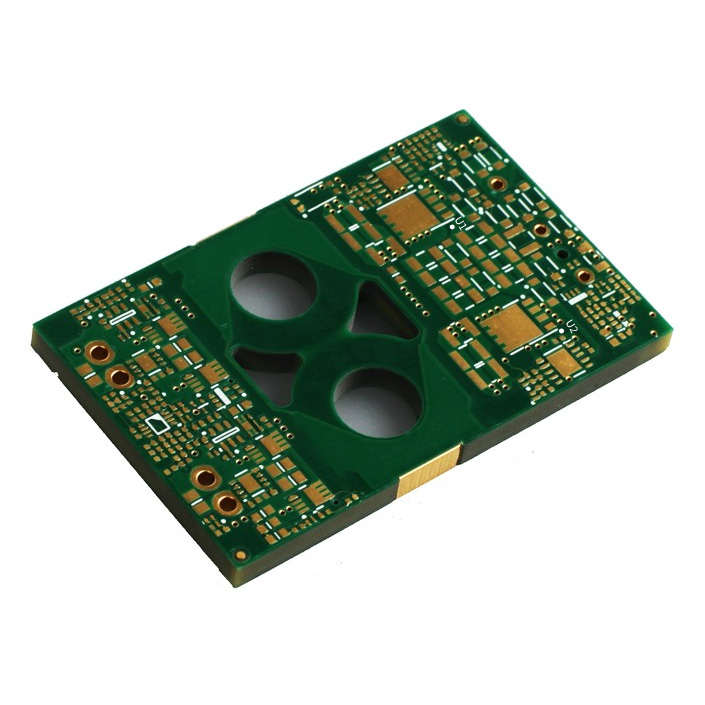

5 oz Power Board12L
5 oz Power Board12L
▪ Plate material: S1000-2m▪ Plate thickness: 4.5mm▪ Number of layers: 12 layers▪ Finished copper thickness: 4OZ for the inner layer, 5OZ for the outer layer▪ Smallest copper hole: 30um▪ Surface process: Immersion gold plating
Learn More > -
Heavy Copper Board10L
Heavy Copper Board10L
▪ Number of layers - 10L▪ Material - TU865▪ Plate thickness - 3.5mm▪ Copper thickness of inner and outer layers - 5OZ▪ Minimum line width/line spacing - 2/2mm▪ Minimum hole diameter - 0.7mm▪ Surface treatment - immersion gold ▪ Application field - communication equipment
Learn More > -
Heavy Copper Board10L
Heavy Copper Board10L
▪ Industrial control system ▪ Number of layers - 10L▪ Material - EM-370(Z)▪ Plate thickness - 2.48mm▪ Copper thickness of inner and outer layers - 4 oz (RTF)▪ Minimum line width/line spacing - 0.433/0.137mm▪ Minimum hole diameter - 0.3mm▪ Surface treatment - immersion gol...
Learn More > -
Heavy Copper Board10L
Heavy Copper Board10L
▪ Number of layers - 10L▪ Material - EM-827▪ Plate thickness - 4.85mm▪ Copper thickness of inner and outer layers - 3 oz▪ Minimum line width/line spacing - 0.45/0.30mm▪ Minimum hole diameter - 0.25mm▪ Surface treatment - immersion gold plating
Learn More > -

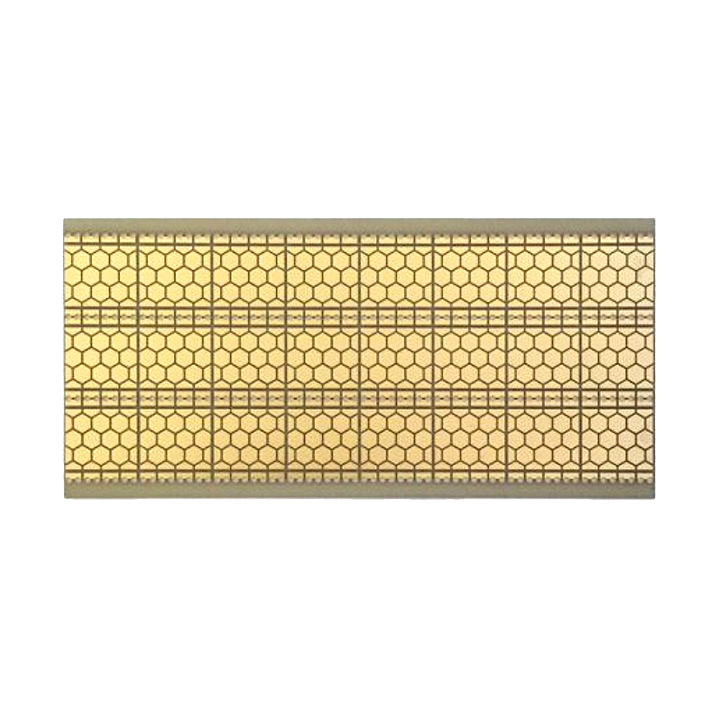

LED Substrate AIO2L
LED Substrate AIO2L
▪ Layer--2L▪ Material --Al2O3▪ Thickness --1.2mm▪ Copper --35um▪ Finishing --ENEPIG
Learn More > -

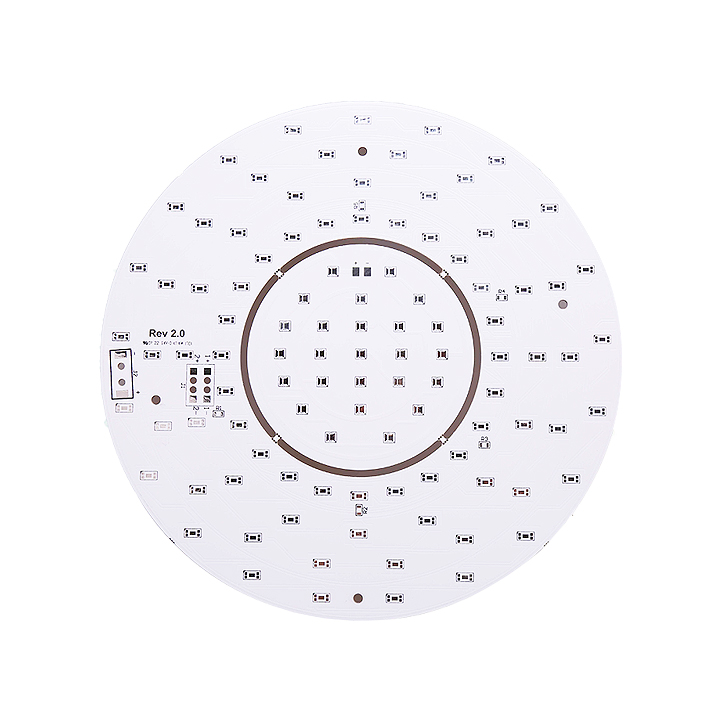

3W LED Aluminum1L
3W LED Aluminum1L
▪ Layer--1L▪ Material --VT4B9▪ Thickness --1.524mm▪ Copper --140um▪ Finishing --LF-HASL
Learn More > -

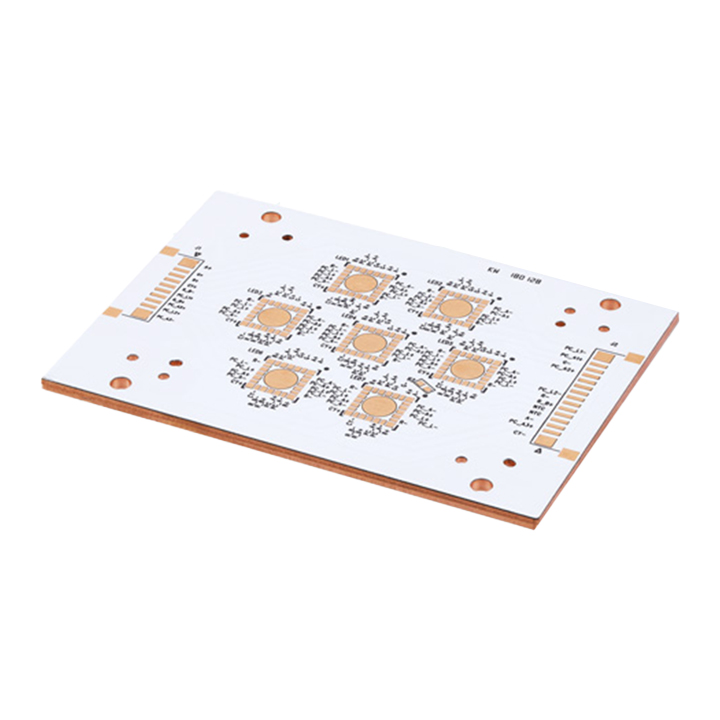

Single Copper base1L
Single Copper base1L
▪ Layer--1L▪ Material --Copper Base▪ Thickness --1.6mm▪ Copper --70um▪ Finishing --ENING
Learn More > -

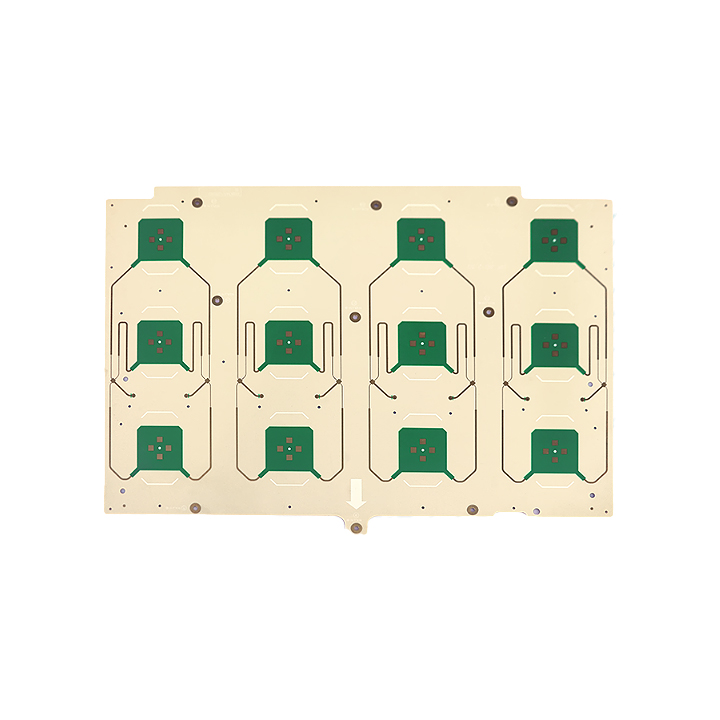

HF Antenna Board2L
HF Antenna Board2L
▪ Number of layers: 2L▪ Material: Doosan DS-7409DV▪ Plate thickness: 0.6mm ± 10%mm▪ Minimum line width/line spacing: 0.580 ± 5% mm▪ Minimum hole diameter: 0.2mm▪ Surface treatment: immersion tinning
Learn More >
