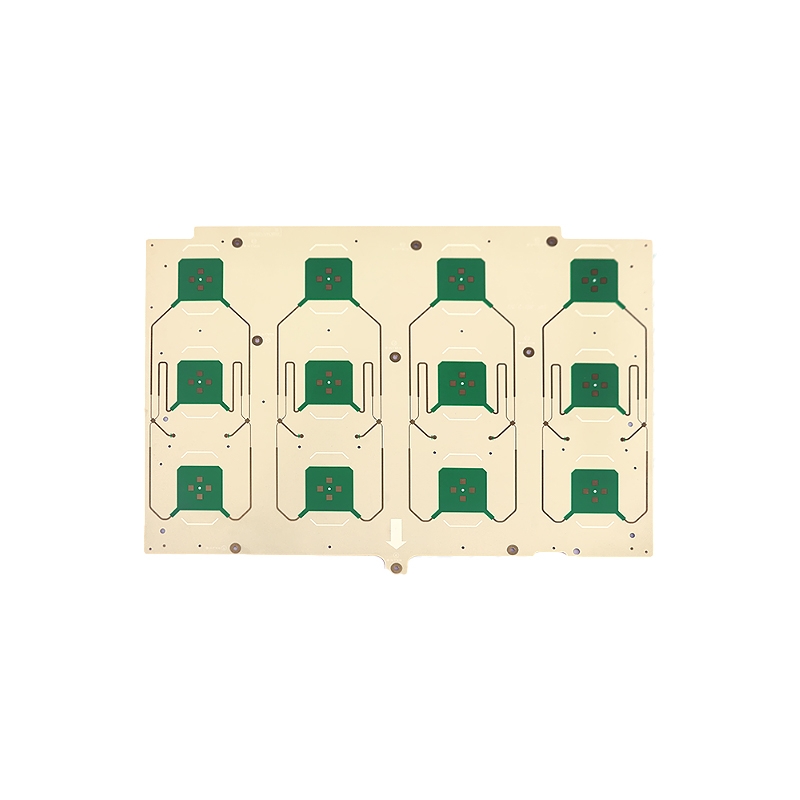

HF Antenna Board
HF Antenna Board
Product Model：2L
Product Description：

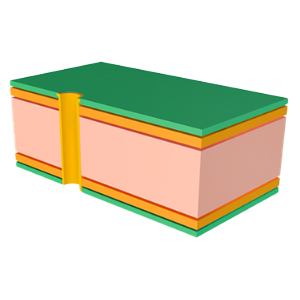

▪ Number of layers: 2L
▪ Material: Doosan DS-7409DV
▪ Plate thickness: 0.6mm ± 10%mm
▪ Minimum line width/line spacing: 0.580 ± 5% mm
▪ Minimum hole diameter: 0.2mm
▪ Surface treatment: immersion tinning
