Heavy Copper Board

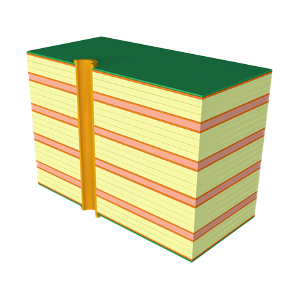

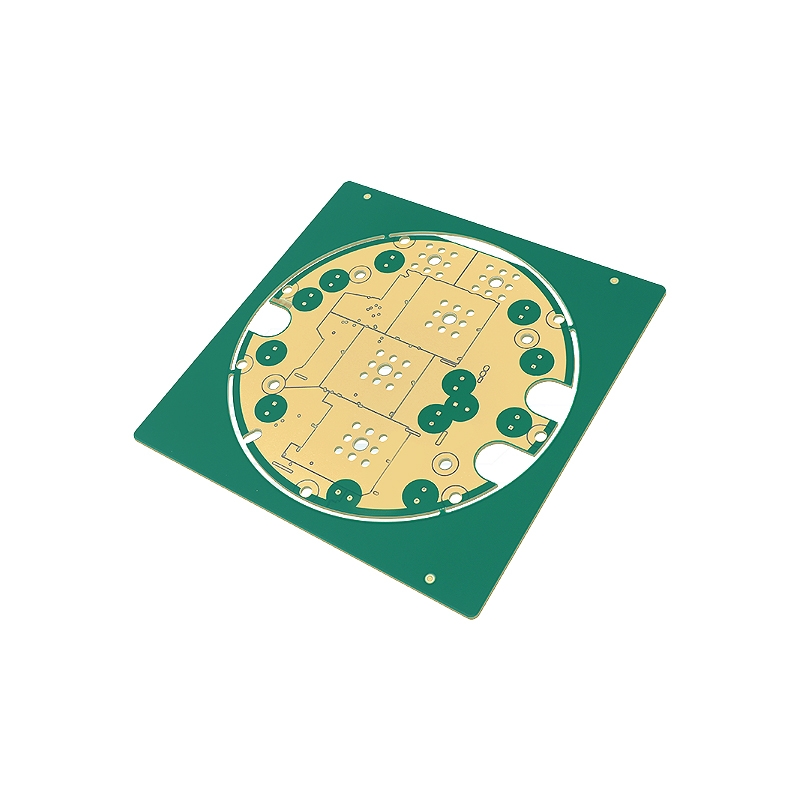

Heavy Copper Board
Product Model：10L
Product Description：
▪ Industrial control system ▪ Number of layers - 10L
▪ Material - EM-370(Z)
▪ Plate thickness - 2.48mm
▪ Copper thickness of inner and outer layers - 4 oz (RTF)
▪ Minimum line width/line spacing - 0.433/0.137mm
▪ Minimum hole diameter - 0.3mm
▪ Surface treatment - immersion gold plating
