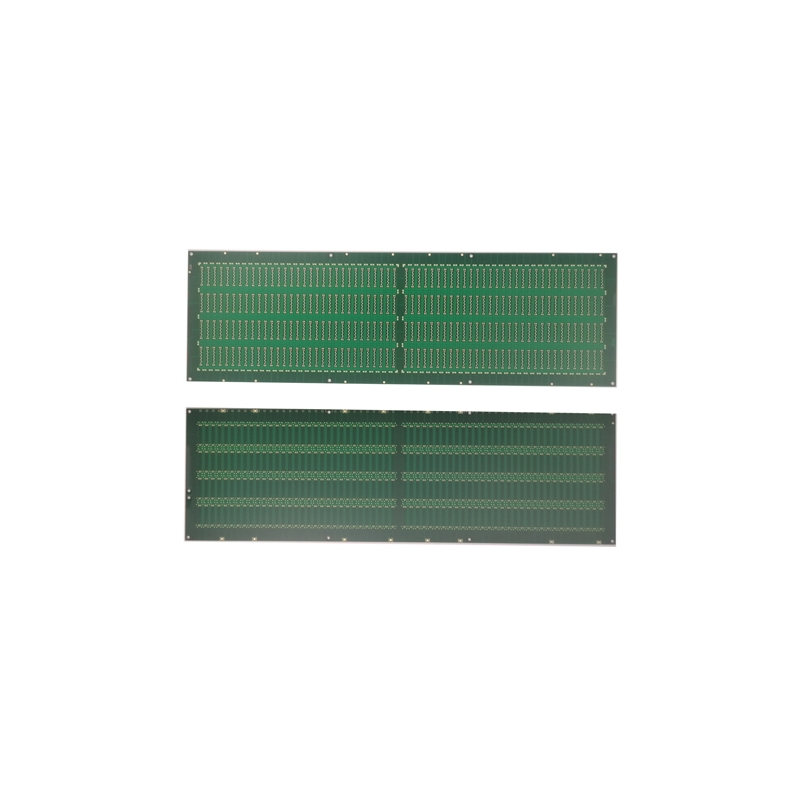

Touch Fingerprint
Touch Fingerprint
Product Model：2L
Product Description：

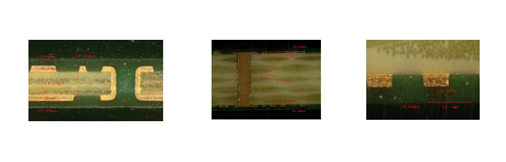

◆ Structure: 2L，Substrate thickness tolerance±15μm;Mechanical Drilling，Filled Via with SM or resin;
◆ Tenting process，L/S≥35/35μm;
◆ AUS320/25±7μm，SM Flatness≤7um;
◆ Surface finish: Soft Ni/Au +Etch-back
