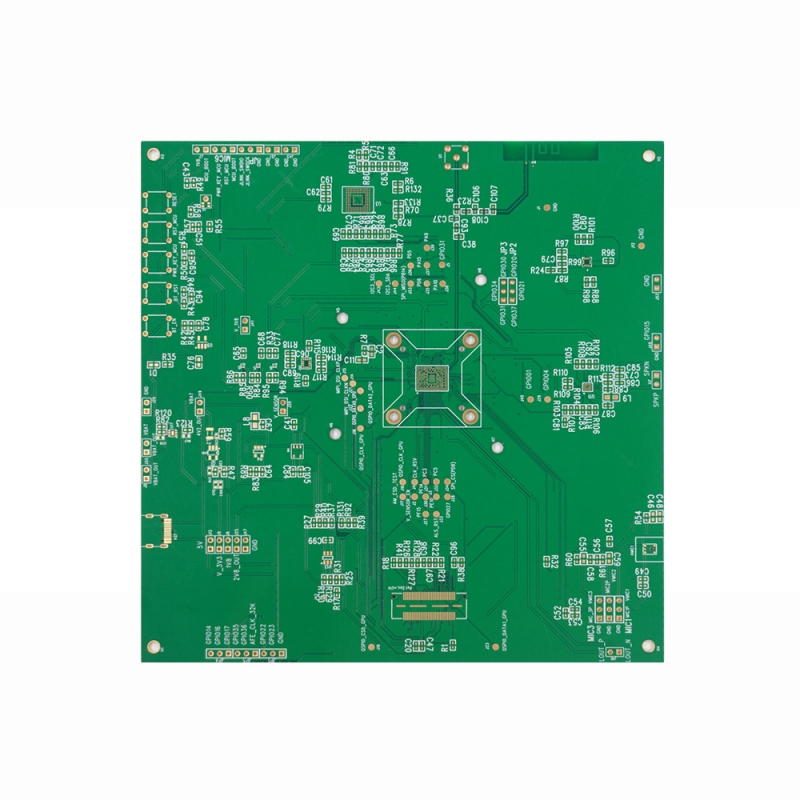

High-level HDI board
Product Model：8L
Product Description：
▪ Number of layers: 8 layers
▪ Material: S1000-2
▪ Aspect ratio: 8:1
▪ Finished product thickness: 1.2mm
▪ Minimum hole diameter: laser hole 0.1mm, mechanical hole 0.15mm
▪ Line width/line spacing: 3mil/4mil
▪ Technical points: 2+N+2, through-hole plate with holes, minimum BGA diameter of 0.23mm
