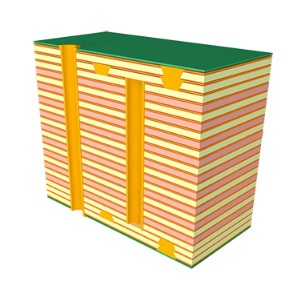

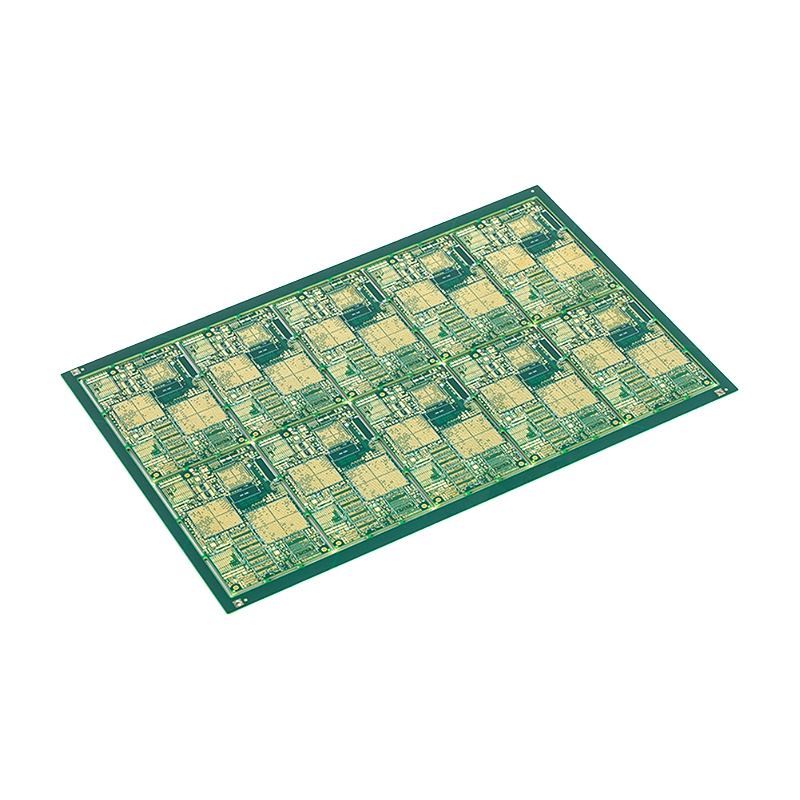

High-level HDI board
High-level HDI board
Product Model：24l
Product Description：
▪ Number of layers: 24L
▪ Material: FR-4 (Tg180) VT-47
▪ Plate thickness: 2.59+/-0.26mm
▪ Minimum line width/line spacing: 3.5/5.0 mil
▪ Minimum hole diameter: 0.25mm
▪ Surface treatment: Immersion gold plating
