High-level HDI board

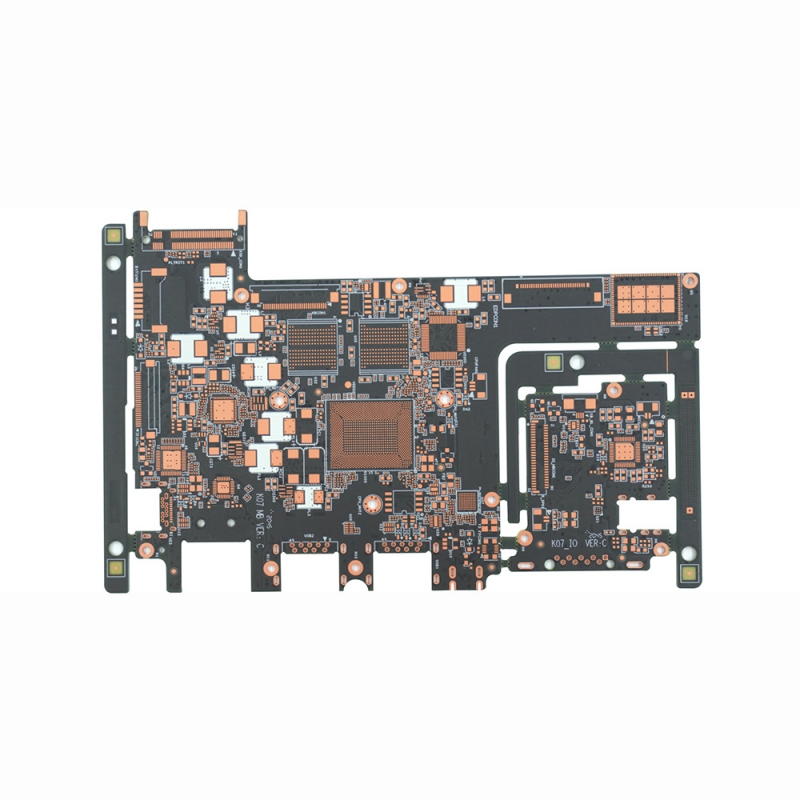

High-level HDI board
Product Model：12L
Product Description：
▪ Product Name: 12-Layer 3-Level HDI Board
▪ Number of layers: 12 layers
▪ Material: TU872
▪ Aspect ratio: 6:1
▪ Finished product thickness: 1.2mm
▪ Minimum hole diameter: laser hole 0.1mm, mechanical hole 0.2mm
▪ Line width/line spacing: 2.6mil/2.6mil
▪ Technical points: 3+N+3, in-panel hole, blind buried hole
Next Article：High-level HDI board
Related Products
-
24lHigh-level HDI board
24lHigh-level HDI board
▪ Number of layers: 24L▪ Material: FR-4 (Tg180) VT-47▪ Plate thickness: 2.59+/-0.26mm▪ Minimum line width/line spacing: 3.5/5.0 mil▪ Minimum hole diameter: 0.25mm▪ Surface treatment: Immersion gold plating
Learn More > -
16LHigh-level HDI board
16LHigh-level HDI board
▪ Layers -- 16Layer ▪ Material -- PanasonicR-5775 ▪ Thickness --2mm ▪ Inner copper -- HOZ ▪ Min line width/spacing -- 2/2mil ▪ Min Aperture --0.1mm ▪ Surface Treament- ENIG ▪ Application --Communication Equipmet
Learn More > -
8LHigh-level HDI board
8LHigh-level HDI board
▪ Number of layers: 8 layers▪ Material: S1000-2▪ Aspect ratio: 8:1▪ Finished product thickness: 1.2mm▪ Minimum hole diameter: laser hole 0.1mm, mechanical hole 0.15mm▪ Line width/line spacing: 3mil/4mil▪ Technical points: 2+N+2, through-hole plate with holes, minimum BGA d...
Learn More > -
12LHigh-level HDI board
12LHigh-level HDI board
▪ Product Name: 12-Layer 3-Level HDI Board▪ Number of layers: 12 layers▪ Material: TU872▪ Aspect ratio: 6:1▪ Finished product thickness: 1.2mm▪ Minimum hole diameter: laser hole 0.1mm, mechanical hole 0.2mm▪ Line width/line spacing: 2.6mil/2.6mil▪ Technical points: 3+N+3,...
Learn More > -
12LHigh-level HDI board
12LHigh-level HDI board
▪ Layers:12L ▪ Board thickness:0.8mm ▪ Material:EM-370 ▪ Min Width/Spacing:60/60um ▪ Surface treament:ENIG+OSP
Learn More >
