High-level HDI board

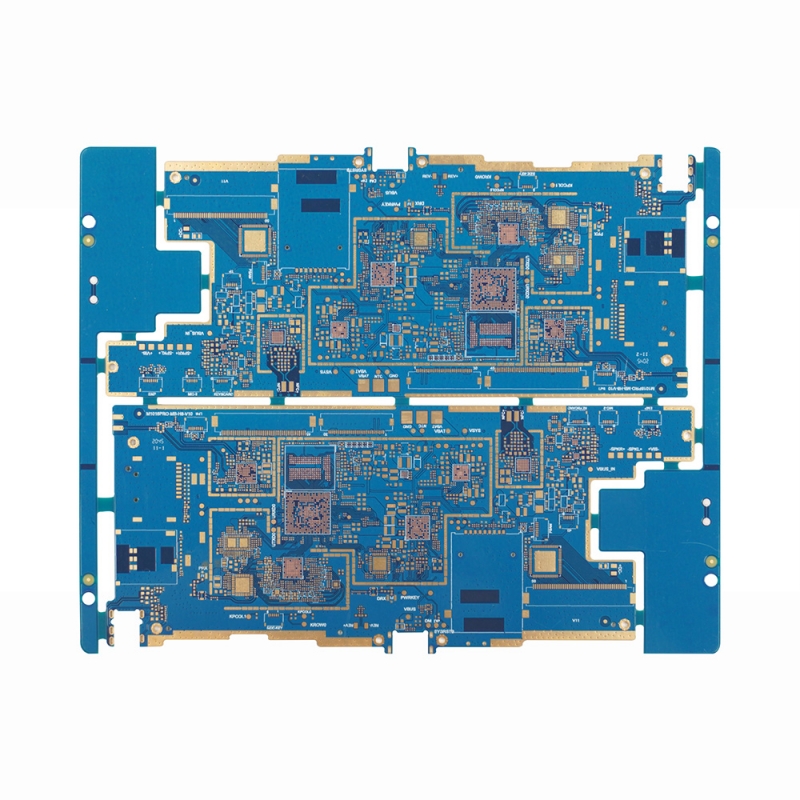

High-level HDI board
Product Model：12L
Product Description：
▪ Layers:12L
▪ Board thickness:0.8mm
▪ Material:EM-370
▪ Min Width/Spacing:60/60um
▪ Surface treament:ENIG+OSP
