High-Multilayer Board
High-Multilayer Board

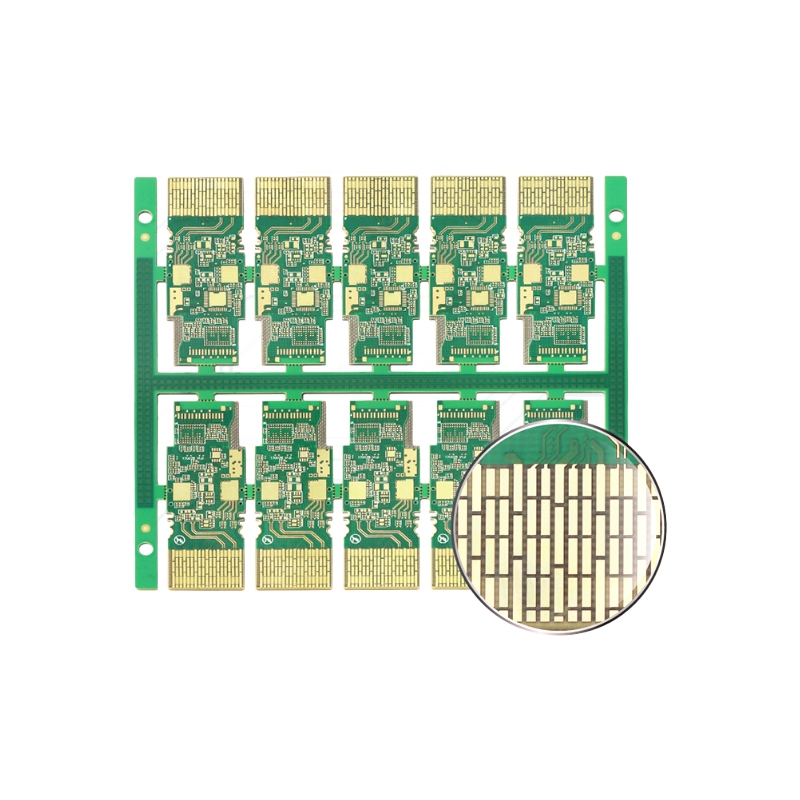

Product Model：10L
Product Description：
▪ Number of layers: 10L
▪ Product Model: 400Gbps QSFP-DD
▪ Material: M6(R-5775)
▪ Thickness tolerance of finished product: Gold finger area 1.0 ± 0.075mm
▪ Plug shape tolerance: ±0.05mm
▪ Hole filling depression: <15μm
▪ Surface treatment: Immersion nickel-palladium gold + electroplated hard gold
▪ Heat dissipation design: embedded copper block
Previous Article：10l Half-Hole Board
Next Article：High-Multilayer Board
Related Products
-
26LHigh Speed PCB
26LHigh Speed PCB
▪ Layer count-26L▪ Material -Tachyon 100G▪ Board Thickness --3.5±0.35mm▪ Copper thickness --0.33OZ▪ Min.LW/LS-0.118/0.051mm.Min▪ hole Size --0.225mm▪ Surface Finish --ENIG▪ Application field-Industrial Control
Learn More > -
10LHigh-Multilayer Board
10LHigh-Multilayer Board
▪ Number of layers: 10L▪ Product Model: 400Gbps QSFP-DD▪ Material: M6(R-5775)▪ Thickness tolerance of finished product: Gold finger area 1.0 ± 0.075mm▪ Plug shape tolerance: ±0.05mm▪ Hole filling depression: <15μm▪ Surface treatment: Immersion nickel-palladium gold + el...
Learn More > -
26LHigh-Multilayer Board
26LHigh-Multilayer Board
▪ Number of layers: 26 layers▪ Material: Tachyon 100G▪ Thickness: 3.5 ± 0.35 mm▪ Inner copper thickness: 0.330Z▪ Minimum line width/line spacing: 0.112/0.05 millimeters▪ Minimum aperture: 0.225 mm▪ Surface treatment: immersion gold plating▪ Application field: Switch
Learn More > -
34LHigh-Multilayer Board
34LHigh-Multilayer Board
▪ Number of layers: 34L▪ Material: FR408HR ▪ Board thickness: 4.0mm ▪ Copper thickness of inner and outer layers: 10Z ▪ Surface treatment: ENIG
Learn More > -
10L10l Half-Hole Board
10L10l Half-Hole Board
.Layers: 10 Layers.Material: Shengyi S1000-2M.Aspect Ratio: 8:1.Finished Thickness: 1.6mm.Minimum Hole Diameter: 0.2mm.Line Width/Spacing: 3mil/3mil.Surface Finish: ENIG (Electroless Nickel Immersion Gold).Technical Highlights: Half-hole, Minimum BGA Pitch 0.2mm
Learn More > -
22L5G High-Speed Products
22L5G High-Speed Products
▪ 22 Layer PCB▪ High Speed Low Loss▪ 2 Lam-L22-3 and L1-22▪ 11 Sets of Back Drill,VIPPO▪ 20 T-Coins 22-3/3-1▪ 10 set of CI Single/Diff▪ HVLP Copper
