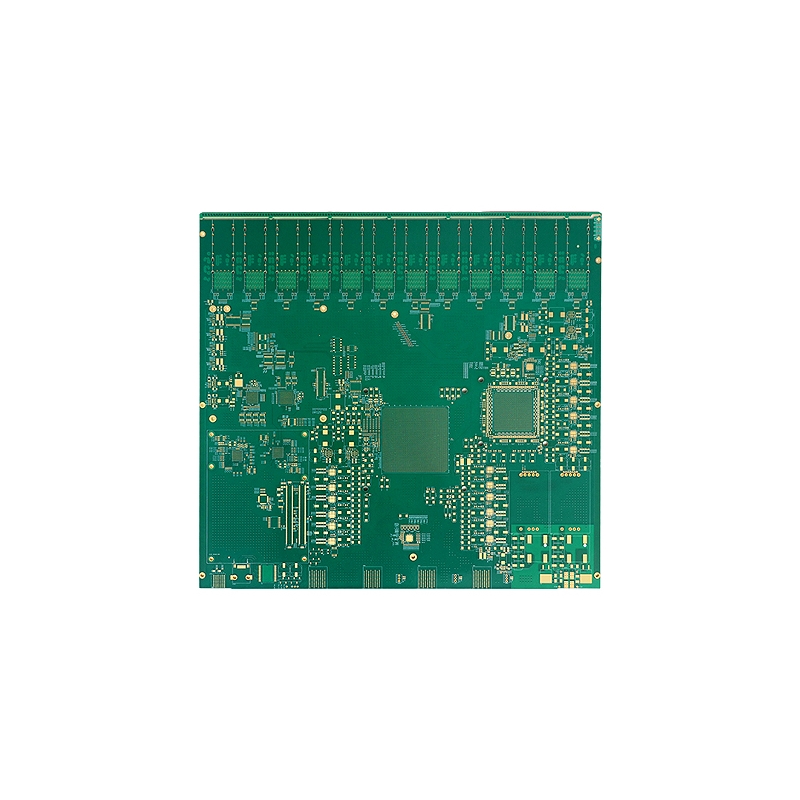

High-Multilayer Board
Product Model：26L
Product Description：

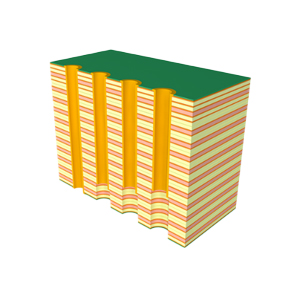

▪ Number of layers: 26 layers
▪ Material: Tachyon 100G
▪ Thickness: 3.5 ± 0.35 mm
▪ Inner copper thickness: 0.330Z
▪ Minimum line width/line spacing: 0.112/0.05 millimeters
▪ Minimum aperture: 0.225 mm
▪ Surface treatment: immersion gold plating
▪ Application field: Switch
