High-Multilayer Board

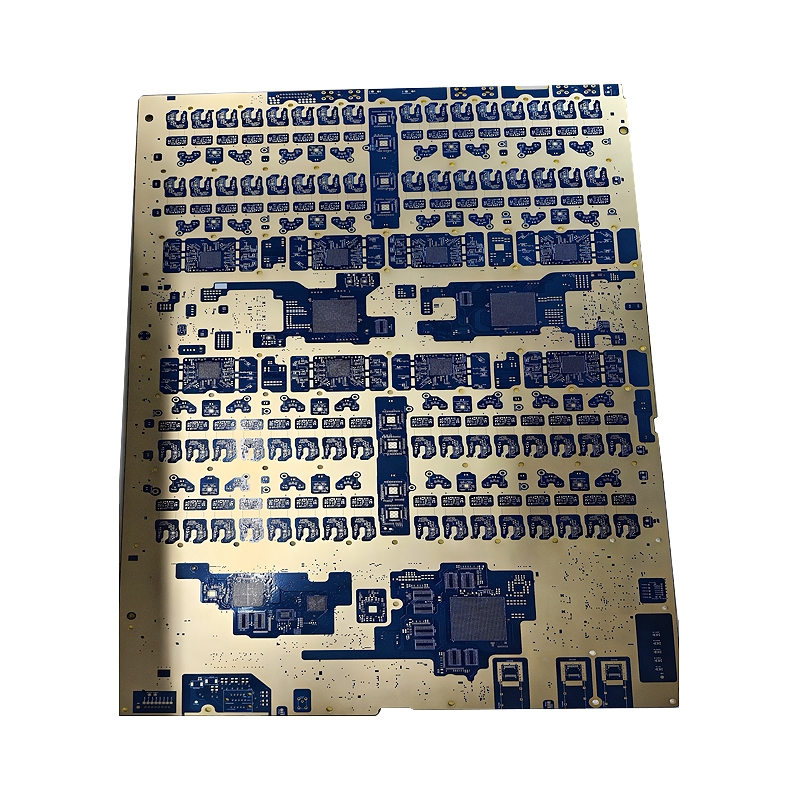

High-Multilayer Board
Product Model：34L
Product Description：
▪ Number of layers: 34L
▪ Material: FR408HR
▪ Board thickness: 4.0mm
▪ Copper thickness of inner and outer layers: 10Z
▪ Surface treatment: ENIG
