Rigid-Flex PCB

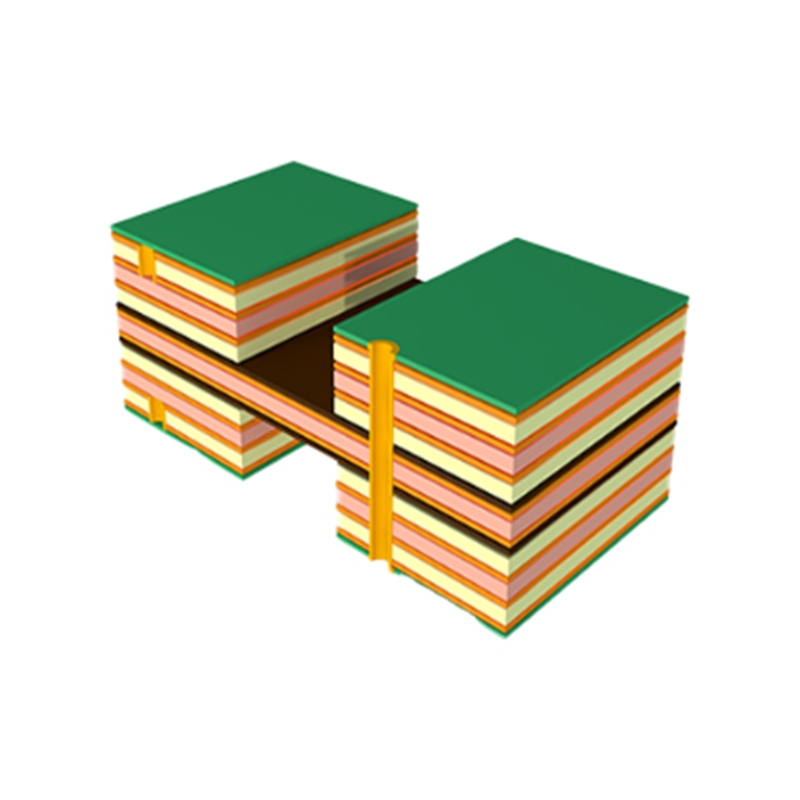

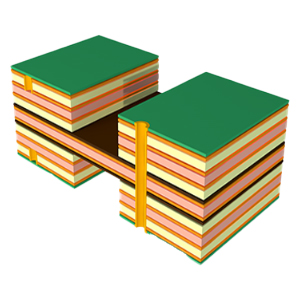

Rigid-Flex PCB
Product Model：8L
Product Description：
▪ Layer count--8L
▪ Material --High TG FR-4+PI
▪ Board thickness --1.0±0.1mm
▪ Min.LW/LS--0.10/0.10mm
▪ Min.Drill Size --0.1mm
▪ Surface Finish--ENIG
Previous Article：Rigid-Flex PCB
Next Article：Rigid-Flex PCB
Related Products
-
14LRigid-Flex PCB
14LRigid-Flex PCB
▪ Layer count--14L▪ Material --High TG FR-4+Flex▪ Board thickness--1.6±0.16mm▪ Min.LW/LS--0.10/0.10mm▪ Min.Drill Size --0.15mm▪ Surface Finish--ENIG
Learn More > -

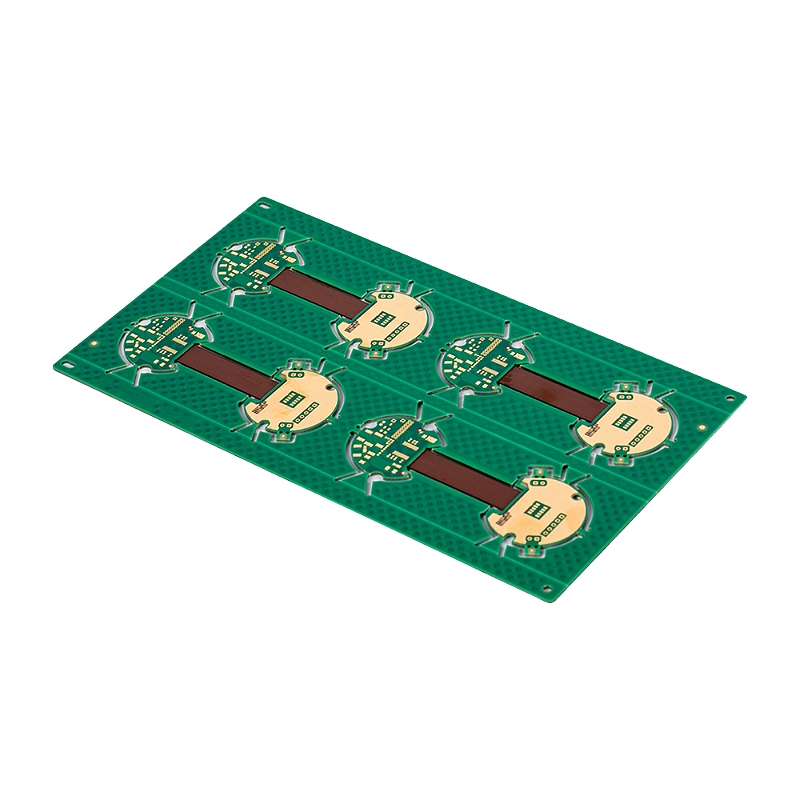

8LRigid-Flex PCB
